Cosmo3DFlow: Wavelet Flow Matching for
Spatial-to-Spectral Compression in
Reconstructing the Early Universe

Abstract

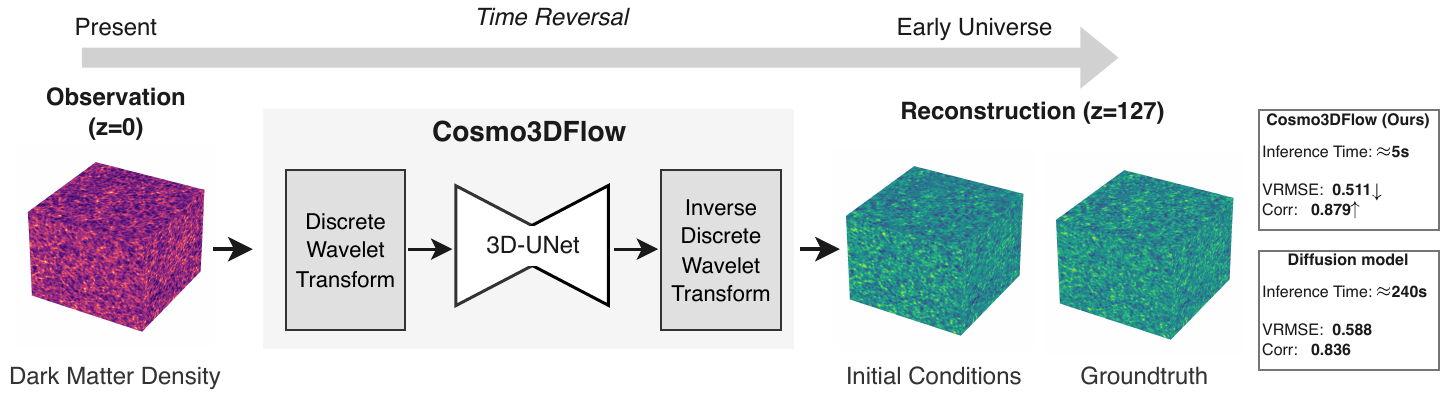

Fig. 1 — Overview of Cosmo3DFlow: a wavelet-domain flow matching framework for reconstructing cosmological initial conditions from present-day observations.

The Void Problem

Approximately 63.7% of cosmic volume is occupied by near-empty voids holding only 16.2% of dark matter mass, yet voxel-based models allocate equal compute to every cell. A single-level 3D Haar DWT converts this spatial sparsity into spectral sparsity — voids collapse to near-zero high-frequency coefficients while filaments and halos retain fine-grained detail — yielding 8× fewer voxels and ~5× lower per-step compute cost.

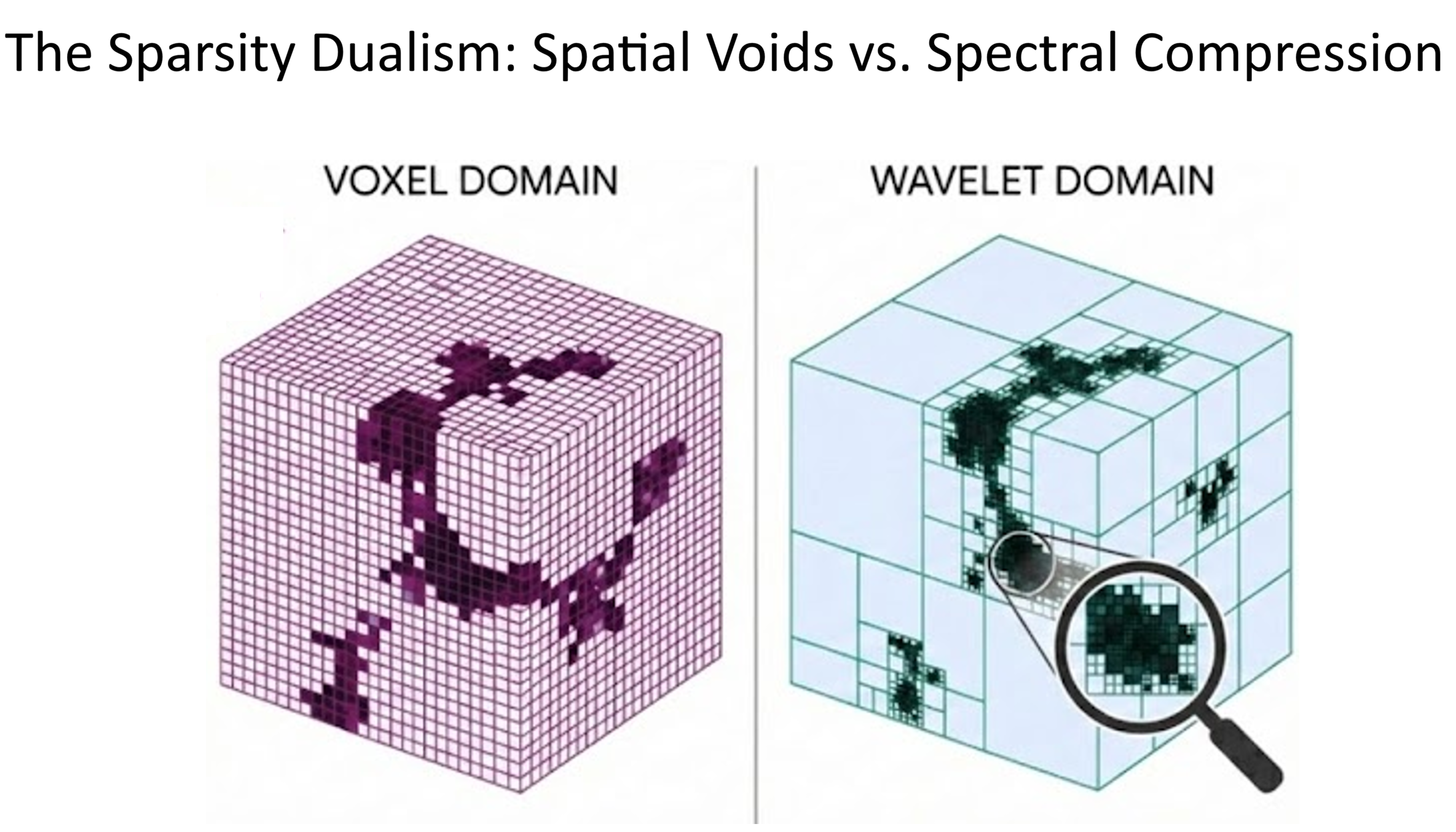

Fig. 2 — Voxel (left) vs. wavelet (right) representation at 128³. The DWT makes voids explicit as near-zero coefficients while preserving filament detail.

Method

Cosmo3DFlow operates entirely in wavelet space: (1) a 3D Haar DWT compresses the input field to 8 coefficient tensors at half spatial resolution (8× compression); (2) a linear flow path interpolates between Gaussian noise and the target in wavelet space; (3) the flow matching loss is minimized jointly with a power spectrum regularizer (λ = 0.01); and (4) at inference, 100 Euler steps in wavelet space followed by an inverse DWT recover the full-resolution density field.

Wavelet-Aware 3D U-Net

The backbone is a 3D U-Net adapted for wavelet inputs. A 16-channel input (8ch wavelet noise + 8ch conditioned observation) passes through encoder–decoder blocks with a fixed 8³ bottleneck. Scale-specific conditioning injects per-level wavelet features at each resolution via 1×1×1 convolutions, and cross-scale skip connections bridge encoder features to non-corresponding decoder levels for multi-scale information flow. Residual blocks follow the BigGAN design with GroupNorm, SiLU, and Gaussian Fourier time embeddings.

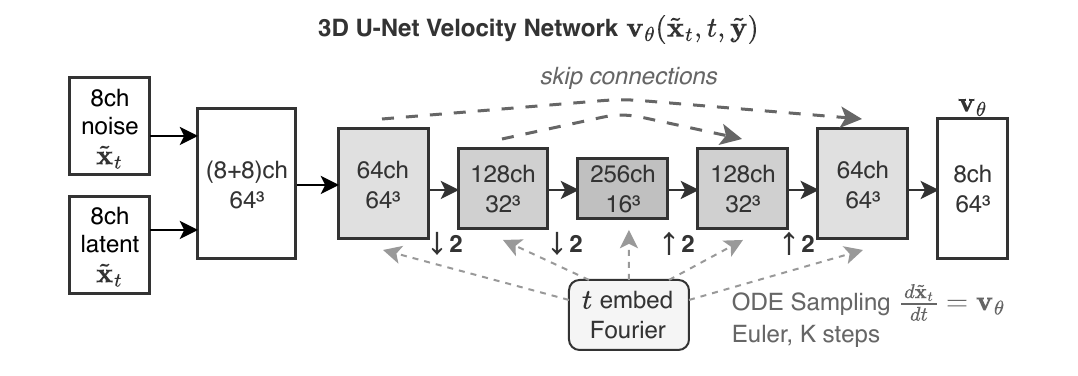

Fig. 3 — Wavelet-aware 3D U-Net with scale-specific conditioning and cross-scale skip connections.

Training

Results

Qualitative Reconstruction

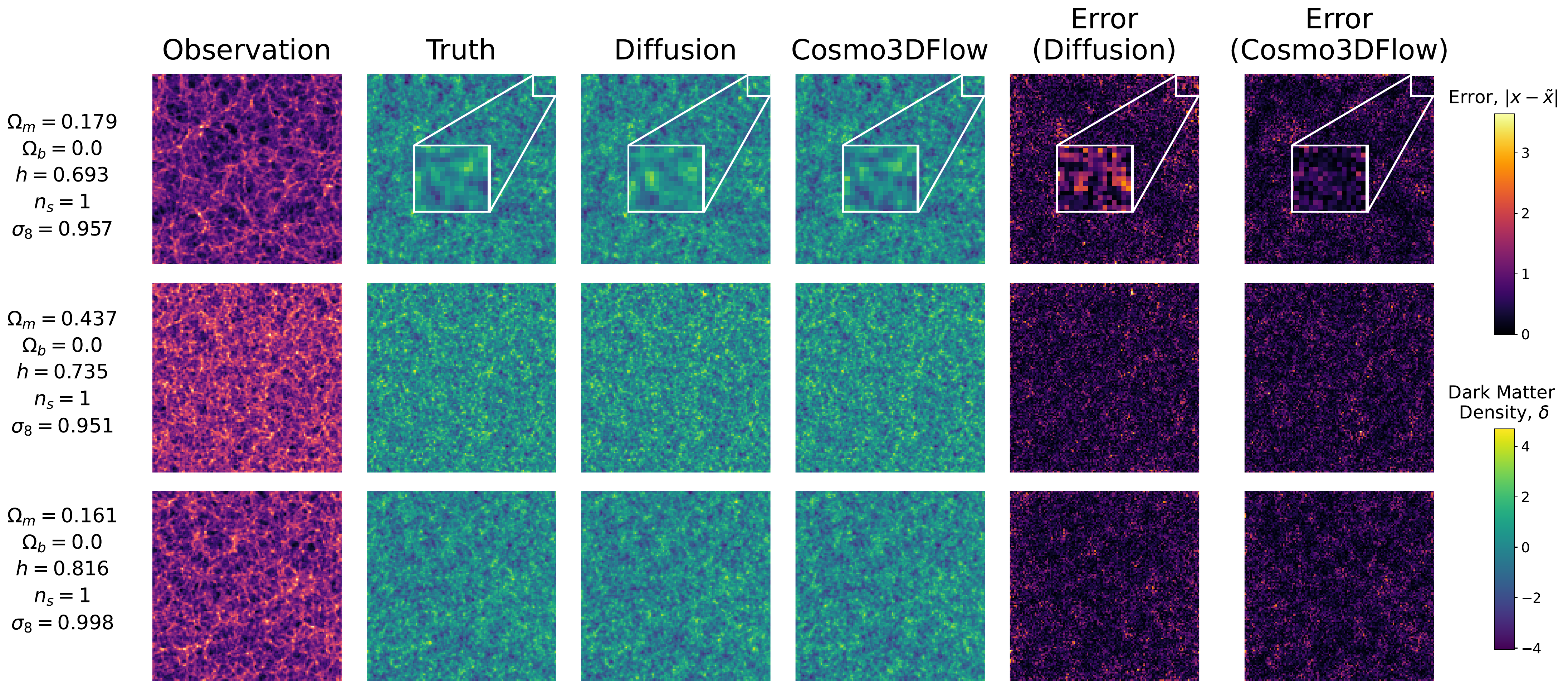

Each row shows a 2D slice from a held-out Standard LH test simulation. Cosmo3DFlow recovers sharp cosmic filaments and halo positions that the diffusion baseline blurs, achieving a 21% lower VRMSE at 128³.

Fig. 4 — Columns: present-day observation (z = 0), ground-truth ICs, diffusion baseline, Cosmo3DFlow, and absolute error maps (darker = lower error).

Computational Efficiency

Cosmo3DFlow is 4.4× faster per ODE step due to 8× wavelet compression, and converges to lower VRMSE at 100 steps than diffusion reaches at 1,000 — a 50× end-to-end speedup (5.2 seconds vs. 243 seconds) with better quality.

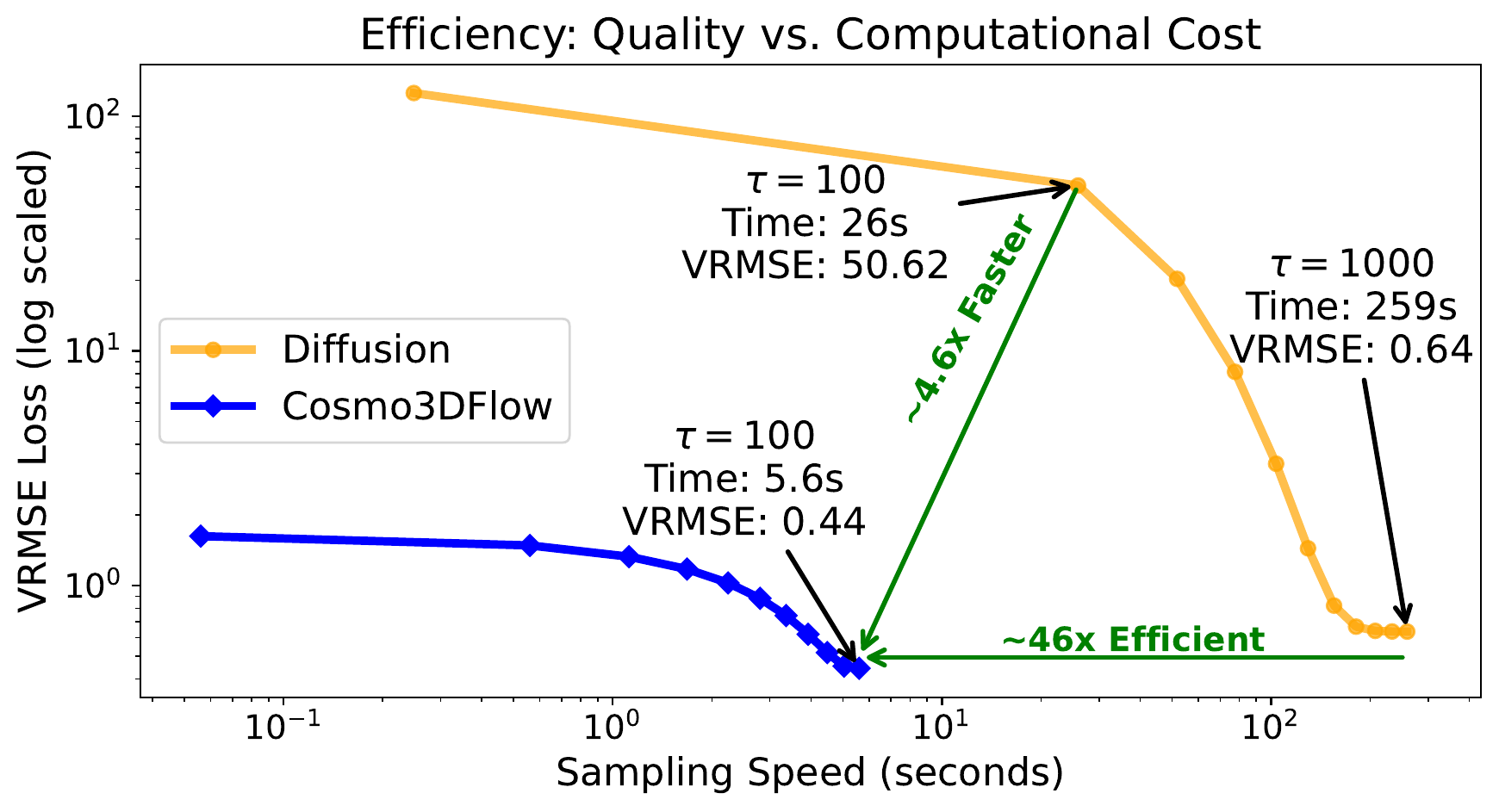

Fig. 5 — VRMSE vs. wall-clock sampling time at 128³ for varying ODE step counts.

The table below summarizes the head-to-head comparison at 128³. Cosmo3DFlow outperforms the diffusion baseline on every metric while using half the peak memory.

Table 1 — Head-to-head comparison at 128³

Convergence

Cosmo3DFlow reaches its best quality at 100 Euler steps and plateaus; diffusion requires 1,000 steps to approach a higher error floor. The deterministic ODE trajectory in flat wavelet space enables stable large-step integration.

Fig. 6 — Top: reconstructed slices at 10 / 50 / 100 / 500 steps. Bottom: VRMSE vs. step count.

Physics Validation

Three spectral statistics — power spectrum P(k), cross-correlation C(k), and transfer function T(k) — are evaluated vs. wavenumber k on the Standard LH test set at 128³. Cosmo3DFlow achieves near-perfect agreement with ground truth across all scales (P(k) R² = 0.99 vs. 0.70 for diffusion).

Fig. 7 — P(k), C(k), and T(k) vs. wavenumber k. Cosmo3DFlow (blue) vs. diffusion (red) vs. ground truth (dashed).

Full Results — Ours / Diffusion · bold = best

Results across all three dataset suites and resolutions. Cosmo3DFlow consistently outperforms the diffusion baseline, with the largest gains at higher resolution.

Table 2 — Standard Latin Hypercube (2,000 simulations)

Table 3 — Big Sobol Sequence (1,000 simulations)

Table 4 — Non-Gaussian f_NL LH (1,000 simulations)

Dataset

All experiments use Quijote N-body simulations at (1,000 h⁻¹ Mpc)³ with 512³ particles, evaluated at resolutions 32³, 64³, and 128³ (redshifts z = 127 and z = 0). Three suites are used: Standard Latin Hypercube (2,000 simulations, 5 ΛCDM parameters, split 1,800/100/100); Big Sobol Sequence (1,000 simulations, 8:1:1 split); and Non-Gaussian f_NL LH (1,000 simulations, f_NL ∈ [−300, 300], 8:1:1 split).
